SHANGHAI QUANYE METAL PACKAGING MATERIALS CO.,LTD is the largest manufacturer of tin mill products in China with advanced technical equipments, It was established in 2001, located in Shanghai,China.
5 Years
| Ask Lasest Price | |
| Brand Name : | QuanJiang |
| Model Number : | MR alkali resistance tinplate |
| Certification : | JIS G3303 , DIN, ASTM, GB |
| Price : | Negotiated |
| Payment Terms : | T/T |
| Supply Ability : | 50000MT/Month |
| Delivery Time : | negotiated |
Prime Electrolytic Tinplate heat resistance paint adhesion sulphir blackening resistance 0.18mm
0.20mm 820mm Tinplate

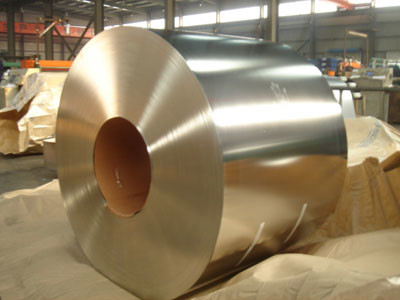

Tinplate Coils/Strips
Tinplate is a thin steel sheet coated by tin. It has an extremely beautiful metallic
luster as well as excellent properties in corrosion resistance, solderability, and
weldability. Tinplate is used for making all types of containers such as food cans,
beverage cans, 18-liter cans, and artistic cans. Its applications are not limited to
containers; recently, tinplate has also been used for making electrical machinery
parts and many other products.
Electrolytic Tin Plate Detial and Specification:
| Commodity | Tinplate |
| Standard | GB2520-2000,JISG3303-2002and DINEN10202-2001 |
| Material | SPCC/MR |
| Thickness | 0.5-0.5mm (tolerance -/+0.01 mm) |
| Width | 600~1250mm (Tolerance: 0~3mm) or as per customers' requires |
| Cutting Length | 600~1250mm (Tolerance: 0~3mm) or as per customers' requires |
| Annealing | BA & CA |
| Hardness | T1 T2 T3 T4 T5 DR8 DR9 BA and CA both |
| Tin Coating | 1.1/1.1 2.8/2.8 5.6/5.6 Or as per customers' requires |
| Surface finish | Bright, Stone, Silver, Matt |
| Coil Diameter | ID 420/ 508/610mm, OD from 1,000 to 1,250m |
| Coil Weight | 3~10 MT |
Package | Seaworthy Standard with wooden pallet, iron corner protected. by sheet or coils according customer's requires. |
| Applications | Metal package usage like paint, chemical can,aerosol can and different food can production, Also battery,electric cable and other industries |
| Temper & Hardness | ||
| Temper | Hardness Guarantee (HR30T) | Applications |
| T1 | 49±3 | Nozzles,spouts,closures,and deep deawing. |
| T2 | 52±3 | Ring and plugs,pie pans,closures,shallow drawn and specialized can parts. |
| T2.5 | 55±3 | Battery can bodies,small can ends and bodies. |
| T3 | 57±3 | Can ends and bodies,large diameter closures,crown caps. |
| T4 | 61±3 | Can ends and bodies,crown caps and small screw closures. |
| T5 | 65±3 | Can ends and bodies for non corrosive products. |
| DR-8 | 73±3 | Small diameter round can bodies and ends. |
Production Process
PARTNER
CERTIFICATE
FAQ
Q:What product information do I need to provide?
A:You need to provide the grade, width, thickness, coating and the number of tons you
need to purchase.
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports,
you can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:What are the certifications for your products?
A:We have ISO 9001, SGS, EWC and other certifications.
Q:How long does your delivery time take?
A:In general, our delivery time is within 30-45 days, and may be delayed if the demand
is extremely large or special circumstances occur.
Q:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory. However,
some of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and
unqualified products will be destroyed.
|
|
