SHANGHAI QUANYE METAL PACKAGING MATERIALS CO.,LTD is the largest manufacturer of tin mill products in China with advanced technical equipments, It was established in 2001, located in Shanghai,China.
5 Years
| Ask Lasest Price | |
| Brand Name : | QuanJiang |
| Model Number : | 307# 83mm food can bottom |
| Certification : | ISO9001 |
| Price : | Negotiated |
| Payment Terms : | T/T or negotiated |
| Supply Ability : | 9000 000 000pcs /Month |
| Delivery Time : | Negotiated |
307# 83mm Tin can lid and bottom cover | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 20%CuSO4 | After soaking in 20% copper sulfate for 3 minutes, there was no obvious rust | |||||||||
| antiacid | After high temperature sterilization at 121℃ for 30 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blistering. | |||||||||
| Resistance to sulfur | After high temperature sterilization at 121℃ for 60 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blackening. | |||||||||
| inspection of appearance | No obvious scratches, leakage coating, no oil, clean and smooth, without loss of round, no obvious deformation; Good straightness when stacked. | |||||||||
Other items parameters
| Dimension | D49.5mm/ 52mm/62mm/ 73mm /83mm/99mm/153 mm 70mm |
| Model | 200# 202# 209# 300# 307# 401# 603# |
| Material | Tin Free Steel or Tinplate |
| Application | For canned food packing, eg. Meat /Fruit /Vegetable ; aerosol |
| Inside coating | Aluminum /White /Gold /Organosol Coating |
| Outside coating | Gold /Clear Coating with Logo design printing/ Clear |

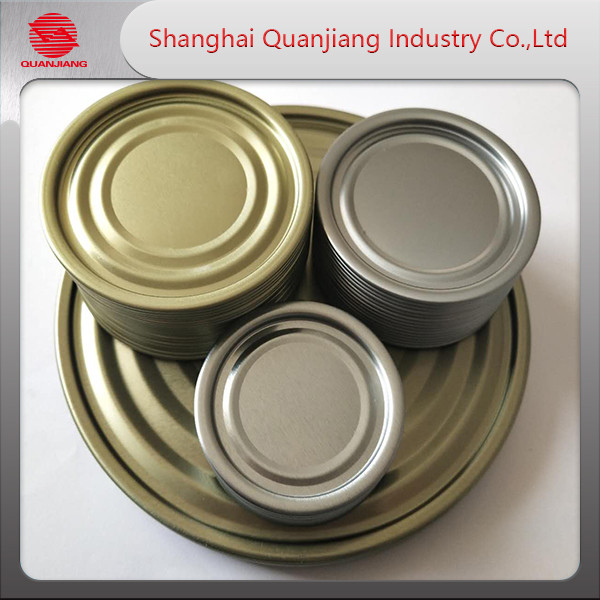

FOOD CAN BOTTOM ENDS-TIN CAN COMPONENTS
Food can bottom ends is usded both tin can lid and tin can bottoms;
By different coating
inside,our can bottom ends could be used for different content,
including meat can, tomato
paste can, fish can,fruit can, and dry food. The external side
printing is customized, your logo
and brand could be shown on it. Our full specification could
satisfy most of demand in metal
package, customized dimension and long term cooperation is welcome.
| MODEL | Can diameter | Chuck Diameter | Inside coating | Outside coating |
| 200 | 50mm | 49.5mm | Gold Lacquer; | Gold Lacquer; |
| 202 | 52mm | 51.8mm | ||
| 211 | 65mm | 64.9mm | ||
| 214 | 70mm | 69.9mm | ||
| 300 | 73mm | 72.16mm | ||
| 307 | 83mm | 82.37mm | ||
| 401 | 99mm | 97.73mm | ||
| 603 | 153mm | 153.4mm |
Production Process
Packing & Delivery
Carton packing or Board packaging .Corrugated carton packaging,
products vertically arrange and
separated by a cross board.The packing is firm and the can cover
does not leak out of the box.
|
|
